JIS Standard Dry No. type Dimens
| No. | type | Dimensions(MM) | Voltage | Nominal | CCA(A) | Terminal | Terminal | Weight | Weight | |
| L*W*H*T.H | (V) | Capacity | Layout | Type | (KG) | (KG) | ||||
| New | Old | (AH) | Dry | Wet | ||||||
| UP001 | 32B20R | N32 | 195X130X165X195 | 12 | 32 | 210 | 1 | E | 6.8 | 9.1 |
| UP002 | 32B20L | N32L | 195X130X165X195 | 12 | 32 | 210 | 0 | E | 6.8 | 9.1 |
| UP003 | 36B20R | NS40 | 200X130X200X220 | 12 | 36 | 274 | 1 | B | 7.2 | 9.8 |
| UP004 | 36B20L | NS40L | 200X130X200X220 | 12 | 36 | 274 | 0 | B | 7.2 | 9.8 |
| UP005 | 32C24R | N40 | 240X130X200X220 | 12 | 40 | 238 | 1 | A | 8 | 12.4 |
| UP006 | 32C24L | N40L | 240X130X200X220 | 12 | 40 | 238 | 0 | A | 8 | 12.4 |
| UP007 | 32C24RS | N40S | 240X130X200X220 | 12 | 40 | 238 | 1 | B | 8 | 12.4 |
| UP008 | 32C24LS | N40LS | 240X130X200X220 | 12 | 40 | 238 | 0 | B | 8 | 12.4 |
| UP009 | 46B24R | NS60 | 240X130X200X220 | 12 | 45 | 325 | 1 | A | 8.4 | 12.6 |
| UP010 | 46B24L | NS60L | 240X130X200X220 | 12 | 45 | 325 | 0 | A | 8.4 | 12.6 |
| UP011 | 46B24RS | NS60S | 240X130X200X220 | 12 | 45 | 325 | 1 | B | 8.4 | 12.6 |
| UP012 | 46B24LS | NS60LS | 240X130X200X220 | 12 | 45 | 325 | 0 | B | 8.4 | 12.6 |
| UP013 | 48D26R | N50 | 260X170X200X220 | 12 | 50 | 330 | 1 | A | 9.3 | 13.6 |
| UP014 | 48D26L | N50L | 260X170X200X220 | 12 | 50 | 330 | 0 | A | 9.3 | 13.6 |
| UP015 | 55D26R | N50Z | 260X170X200X220 | 12 | 55 | 390 | 1 | A | 10.4 | 14.7 |
| UP016 | 55D26L | N50ZL | 260X170X200X220 | 12 | 55 | 390 | 0 | A | 10.4 | 14.7 |
| UP017 | 65D26R | N60 | 260X170X200X220 | 12 | 60 | 390 | 1 | A | 10.8 | 15.1 |
| UP018 | 65D26L | N60L | 260X170X200X220 | 12 | 60 | 390 | 0 | A | 10.8 | 15.1 |
| UP019 | 75D26R | NS70 | 260X170X200X220 | 12 | 65 | 413 | 1 | A | 11.2 | 15.6 |
| UP020 | 75D26L | NS70L | 260X170X200X220 | 12 | 65 | 413 | 0 | A | 11.2 | 15.6 |
| UP021 | 80D26R | NX110-5 | 260X170X200X220 | 12 | 70 | 413 | 1 | A | 12.3 | 16.5 |
| UP022 | 80D26L | NX110-5L | 260X170X200X220 | 12 | 70 | 413 | 0 | A | 12.3 | 16.5 |
| UP023 | 65D31R | N70 | 310X170X200X220 | 12 | 70 | 430 | 1 | A | 12.5 | 16.5 |
| UP024 | 65D31L | N70L | 310X170X200X220 | 12 | 70 | 430 | 0 | A | 12.5 | 19.8 |
| UP025 | 75D31R | N70Z | 310X170X200X220 | 12 | 75 | 450 | 1 | A | 12.5 | 19.8 |
| UP026 | 75D31L | N70ZL | 310X170X200X220 | 12 | 75 | 450 | 0 | A | 12.5 | 19.8 |
| UP027 | 95D31R | N80 | 310X170X200X220 | 12 | 80 | 480 | 1 | A | 13.4 | 20.9 |
| UP028 | 95D31L | N80L | 310X170X200X220 | 12 | 80 | 480 | 0 | A | 13.4 | 20.9 |
| UP029 | N90 | 355X175X190X215 | 12 | 90 | 500 | 1 | A | 15.2 | 22.7 | |
| UP030 | N90L | 355X175X190X215 | 12 | 90 | 500 | 0 | A | 15.2 | 22.7 | |
| UP031 | 95E41R | N100 | 410X175X205X225 | 12 | 100 | 512 | 1 | A | 16.4 | 24.2 |
| UP032 | 95E41L | N100L | 410X175X205X225 | 12 | 100 | 512 | 0 | A | 16.4 | 24.2 |
| UP033 | N100Z | 410X175X205X225 | 12 | 105 | 577 | 1 | A | 17.8 | 25.2 | |
| UP034 | N110 | 430X170X210X230 | 12 | 110 | 600 | 1 | A | 18.6 | 26.6 | |
| UP035 | 115F51 | N120 | 505X180X210X235 | 12 | 120 | 638 | 3 | A | 20.4 | 31.4 |
| UP036 | 145F51 | N135 | 505X180X210X235 | 12 | 135 | 699 | 3 | A/E | 22.9 | 33.8 |

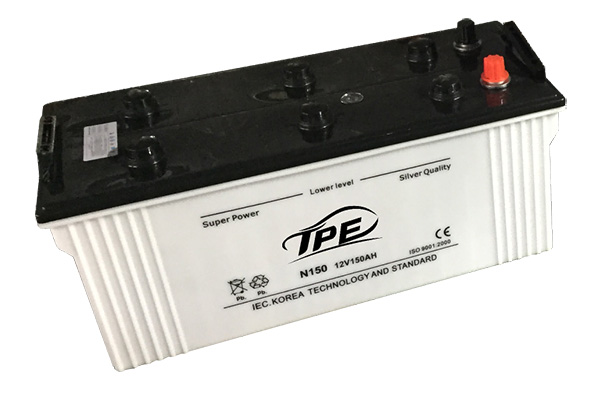

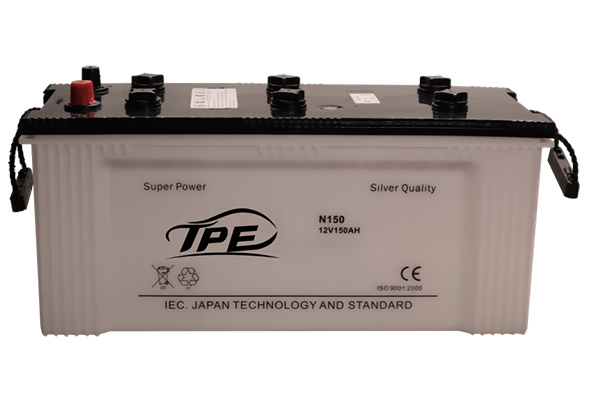

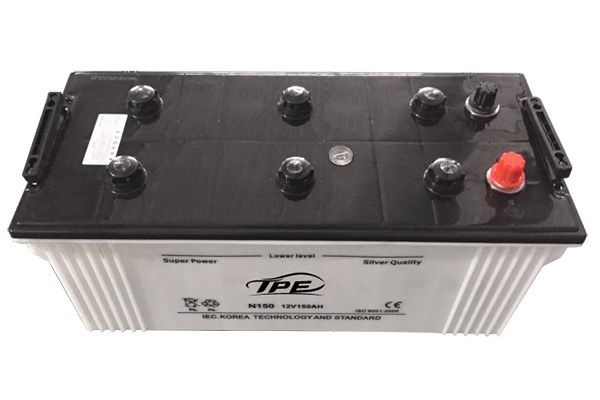

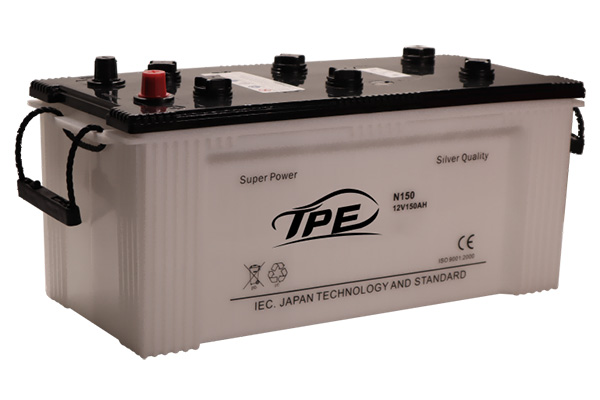

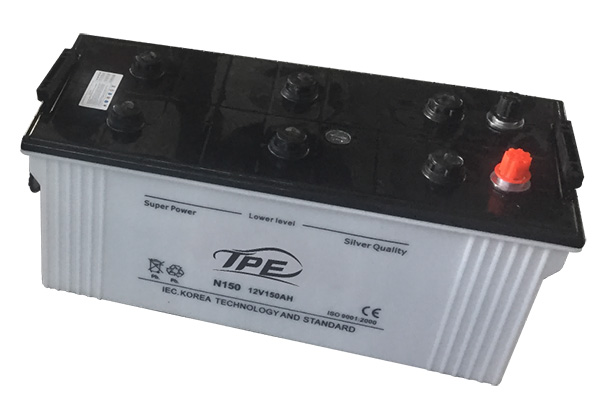

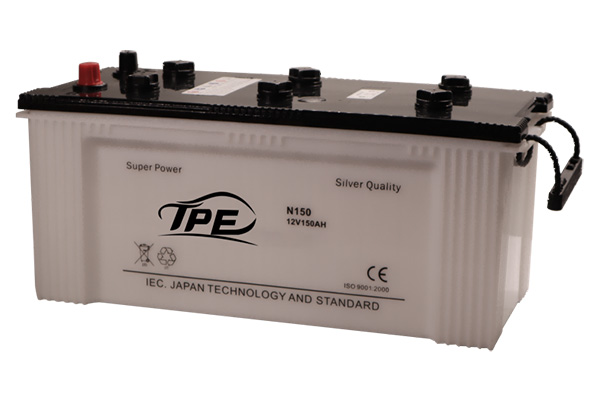

| UP037 | 154G51 | N150 | 505X220X210X235 | 12 | 150 | 754 | 3 | A/E | 23.8 | 42 |
| UP038 | 165G51 | N165 | 505X220X210X235 | 12 | 165 | 820 | 3 | A/E | 25.4 | 43.4 |
| UP039 | 195G51 | N180 | 505X265X210X235 | 12 | 180 | 885 | 3 | A/E | 29 | 49.8 |
| UP040 | 190H52 | N200 | 505X265X210X235 | 12 | 200 | 924 | 3 | A/E | 30.6 | 51.2 |
